Pettibone Equipment

Pettibone Equipment | Cary-LiftPettibone has always meant superior performance. Every feature that goes into their equipment is there for one good reason - you. Providing solutions through solid construction and smart features, like precise hydraulic boom placement, stronger axle designs and maximum visibility around the cab is how Pettibone equipment has become an industry leader.

With the heaviest capacities, longest reaches and highest lifts in their class, Pettibone’s brawn matches up to its brain power. Add high-performance engines and well-engineered parts, plus a full line of attachments, and you've got yourself one tough work dog that can take on all your job-site needs.

Pettibone is dedicated to material-handling equipment. It's all they've ever done, will ever do. In the 1950s, they revolutionized the job site with the world's first forward-reaching, rough-terrain machines. Since then, they've continued to give customers superior machines that can tackle their toughest demands. From design to engineering to production and owner support, Pettibone equipment does it best.

Pettibone Cary-Lift® Equipment

This line of Pettibone Equipment features unique overhead arm lift offering you full frontal visibility even when carrying a full load. The extendable reach allows you to reach out up to four feet without needing to preposition the machine.

The Cary-Lift® line comes complete with a Cummins emissions certified engine with full electronic control protection. Their heavy duty axles, four wheel drive, four wheel steering and hydraulic sway ensure you can safely transport loads over even the roughest terrain.

Cary-Lift 154 | Pettibone EquipmentCary-Lift® 154

• 14' maximum lift height
• 10' 6" maximum reach from tires
• 15,000 lbs load capacity retracted at a 24" load center
• 10,000 lbs load capacity retracted at a 24" load center
• 20' turning radius that won't affect stability or capacity

Cary-Lift 204 | Pettibone EquipmentCary-Lift® 204

• 21' 6" turning radius
• 14' maximum lift height
• 8' 3.75" maximum reach from tires
• 20,000 lbs load capacity retracted at a 24" load center
• 12,000 lbs load capacity extended at a 24" load center



Cary-Lift 254 | Pettibone EquipmentCary-Lift® 254

• 23' 6" turning radius
• 14' maximum lift height
• 10' 6" maximum reach from tires
• 25,000 lbs load capacity retracted at a 24" load center
• 15,000 lbs load capacity extended at a 24" load center



Cary-Lift 304 | Pettibone EquipmentCary-Lift® 304

• 25' 5" turning radius
• 14' maximum lift height
• 10' 1" maximum reach from tires
• 30,000 lbs load capacity retracted at a 36" load center
• 15,000 lbs load capacity extended at a 36" load center


Cary-Lift 304 Tire ManipulatorCary-Lift® 304 IMT Tire Handler

• 25' 5" turning radius
• 14' maximum lift height
• 4.5" below ground reach
• 10' 1" maximum reach from tires
• 21,500 lbs load capacity retracted at a 36" load center



Pettibone Speed Swing® | Swing Loader

This series offers precise hydraulics and full visibility when laying rails, setting tiles or clearing paths. With the ability to work both on and off the rails these Pettibone machines have large all-terrain tires and are available with a wide variety ofattachments.

Featuring a turbo diesel engine, with converter reduction and powershift transmission, the Speed Swing can move heavy loads, including railcars easily every time. The centralized hydraulic and electrical areas and the tiltable cab make maintenance quick and easy.

Speed Swing 445| Pettibone Speed Swing® 445E

• 180° boom rotation
• 8,000 lbs maximum side lift capacity on tires
• 10,000 lbs maximum front lift capacity on tires
• 10,000 lbs maximum front lift capacity on Hi-rail
• 5,400 lbs maximum side lift capacity on Hi-rail

Speed Swing 360 | Pettibone EquipmentSpeed Swing® 360

• 360° boom rotation
• 12,000 lbs maximum side lift capacity on tires
• 15,000 lbs maximum front lift capacity on tires
• 8,000 lbs maximum side lift capacity on Hi-rail
• 15,000 lbs maximum front lift capacity on Hi-rail

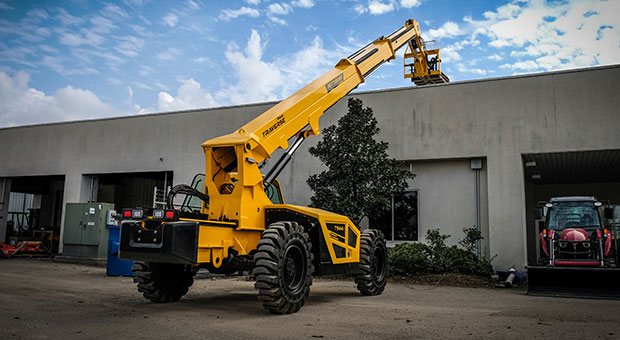

Pettibone Extendo™ Telehandlers

Built to handle the toughest loads on the most challenging job sites the Pettibone Extendo™ Telehandler features the most responsive hydraulics in the industry. With a rapid response hydraulic system with heavy duty lift cylinders and a single joystick control for all boom functions the Extendo™ telehandler can handle any job with ease.

As with other Pettibone equipment the Extendo™ features two wheel, four wheel and crab steering. Combined with four wheel drive and up to 21" of ground clearance this telehandler will easily traverse any terrain. And with unmatched visibility your operators can safely and quickly navigate job sites.

Extendo 736 | Pettibone EquipmentExtendo™ 736

• 3' below grade reach
• 6' maximum lift height
• 7,000 lbs maximum lift capacity
• 32 km/h (20 mph) maximum travel speed
• 24' maximum forward reach at 24" load center

Extendo 744 | Pettibone EquipmentExtendo™ 744

• 3' 6" below grade reach
• 44' 4" maximum lift height
• 7,000 lbs maximum lift capacity
• 32 km/h (20 mph) maximum travel speed
• 30' 3" maximum forward reach at 24" load center

Extendo 936 | Pettibone EquipmentExtendo™ 936

• 3' below grade reach
• 36' 2" maximum lift height
• 9,000 lbs maximum lift capacity
• 32 km/h (20 mph) maximum travel speed
• 24' maximum forward reach at 24" load center

Extendo 944 | Pettibone EquipmentExtendo™ 944

• 3' 6" below grade reach
• 44' 4" maximum lift height
• 9,000 lbs maximum lift capacity
• 32 km/h (20 mph) maximum travel speed
• 30' 3" maximum forward reach at 24" load center

Extendo 1144 | Pettibone EquipmentExtendo™ 1144

• 3' 3" below grade reach
• 44' 6" maximum lift height
• 11,000 lbs maximum lift capacity
• 32 km/h (20 mph) maximum travel speed
• 30' 3" maximum forward reach at 24" load center

Extendo 1157 | Pettibone EquipmentExtendo™ 1157

• 3' 11" below grade reach
• 57' maximum lift height
• 11,000 lbs maximum lift capacity
• 32 km/h (20 mph) maximum travel speed
• 42' 1" maximum forward reach at 24" load center

Extendo 1530 | Pettibone EquipmentExtendo™ 1530

• 0' 2" below grade reach
• 30' 10" maximum lift height
• 15,000 lbs maximum lift capacity
• 32 km/h (20 mph) maximum travel speed
• 17' 3" maximum forward reach at 24" load center

Pettibone Traverse Telehandler

Designed to maximize productivity the Traverse Telehandler has the highest-in-class reach and lift capacity of any telehandler on the market. Featuring 70" of horizontal boom transfer this piece of Pettibone equipment offers precise placement of loads in places previously unreachable with a telehandler.

With two wide stance, heavy duty lift cylinders, a 24° frame sway, and rear axle stabilization the Traverse offers enhanced stability for extreme load handling. While the two wheel, four wheel and crab steering combined with the 21" ground clearance ensures you can navigate the toughest terrain with ease.

Traverse T736 | Pettibone EquipmentTraverse T736

• 2' 7" below grade reach
• 70" horizontal boom travel
• 36' 2" maximum lift height
• 7,000 lbs maximum lift capacity
• 32 km/h (20 mph) maximum travel speed
• 29' 10" maximum forward reach at 24" load center

Traverse T744 | Pettibone EquipmentTraverse T744

• 3' 1" below grade reach
• 70" horizontal boom travel
• 44' 6" maximum lift height
• 7,000 lbs maximum lift capacity
• 32 km/h (20 mph) maximum travel speed
• 36' 1" maximum forward reach at 24" load center

Traverse T936 | Pettibone EquipmentTraverse T936

• 2' 7" below grade reach
• 70" horizontal boom travel
• 36' 2" maximum lift height
• 9,000 lbs maximum lift capacity
• 32 km/h (20 mph) maximum travel speed
• 29' 10" maximum forward reach at 24" load center

Traverse T944 | Pettibone EquipmentTraverse T944

• 3' 1" below grade reach
• 70" horizontal boom travel
• 44' 6" maximum lift height
• 9,000 lbs maximum lift capacity
• 32 km/h (20 mph) maximum travel speed
• 36' 1" maximum forward reach at 24" load center

TraverseT1157 | Pettibone EquipmentTraverse T1157

• 3' 11" below grade reach
• 70" horizontal boom travel
• 57' 6" maximum lift height
• 11,000 lbs maximum lift capacity
• 32 km/h (20 mph) maximum travel speed
• 48' 9" maximum forward reach at 24" load center

ARDCO Buggies by Pettibone

A global standard in geophysical equipment, ARDCO has been developing equipment for the oil and gas industry for over 60 years. Their off road equipment is designed to meet the demanding needs of oil drilling, pipeline construction, drilling and specialized equipment transportation.

K4x4 Geophysical Buggy

By offering equipment that provides enhanced speed, productivity and reliability ARDCO Buggies by Pettibone are operating in almost every region of the world, including North America, the Middle East, Asia, and Eastern Europe.

The most popular seismic work design, the 4x4 standard buggy, offers articulated center pivot steering with hydraulic cylinders.

Geophysical | Pettibone Equipment• 30 or 60 gallon fuel tank
• 12,000 lbs payload capacity
• 32 km/h (20 mph) ground speed
• Optional Ramsey 700 or 800 winch
• 10 ply, Super Terra or Flo grip tire options
• Cummins QSB, Caterpillar or Deutz engine options





Model C-1000 Seismic Drill

• 16' welded tubular steel mast
• Heavy duty pipe storage rack
• Heavy duty top-head drive rotary assembly
• Cable drum hole loader with 250' of 1/4" cable
• Up to 700 lbs ft torque with optional torque up to 1,200 lbs


K4x4 Geothermal Buggy

With a growing presence in the geothermal industry, ARDCO supports operators by providing enhanced speed and productivity with their equipment. Combined with ARDCO or other manufacturer drills this geothermal buggy provides rugged and reliable geothermal drilling.

Geothermal | Pettibone Equipment• 30 or 60 gallon fuel tank
• 12,000 lbs payload capacity
• 32 km/h (20 mph) ground speed
• Optional Ramsey 700 or 800 winch
• 10 ply, Super Terra or Flo grip tire options
• Cummins QSB, Caterpillar or Deutz engine options





Model C-1000 Geothermal Drill

• 2 or 4 hydraulic stabilizers
• Heavy duty pipe storage rack
• 16' welded tubular steel mast
• Heavy duty top-head drive rotary assembly
• Cable drum hole loader with 250' of 1/4" cable
• Up to 700 lbs ft torque with optional torque up to 1,200 lbs
• Buggy mounted air compressors for operating air hammer drilling, and water injecting systems for air drilling


K4x4 Geotechnical Buggy

Enabling exploration and production crews to reach remote locations and navigate difficult terrain is hallmark of all ARDCO machines. Fully customizable to meet your applications specific needs the K4x4 Geotechnical buggy is a growing presence in the geotechnical industry.

Geotechnical | Pettibone Equipment• 30 or 60 gallon fuel tank
• 12,000 lbs payload capacity
• 32 km/h (20 mph) ground speed
• Optional Ramsey 700 or 800 winch
• 10 ply, Super Terra or Flo grip tire options
• Cummins QSB, Caterpillar or Deutz engine options





Model C-1000 Geotechnical Drill

• Hydraulic sample extruder
• 2 or 4 hydraulic stabilizers
• 16' welded tubular steel mast
• Heavy duty pipe storage rack
• Optional hydraulic sliding drill base
• Optional hydraulic CAT head available
• Heavy duty top-head drive rotary assembly
• Cable drum hole loader with 250' of 1/4" cable
• Up to 700 lbs ft torque with optional torque up to 1,200 lbs
• Standard Penetration Testing automatic hydraulic hammer
• Buggy mounted air compressors for operating air hammer drilling, and water injecting systems for air drilling




K4x4 Off Road Transport

With a long heritage of meeting the diverse and demanding needs of off-road equipment transportation, ARDCO specializes in applications such as pipe, pole and utility tower towing, welding trucks, tire and lube tracks, tanker trucks and utility vehicles.

Off Road Transport | Pettibone• 30 or 60 gallon fuel tank
• 12,000 lbs payload capacity
• Optional 2-3 man enclosed cab
• 32 km/h (20 mph) ground speed
• Optional Ramsey 700 or 800 winch
• Custom lengths available upon request
• 10 ply, Super Terra or Flo grip tire options
• Cummins QSB, Caterpillar or Deutz engine options
